Komputer Grafik Metode Bresenham, Menggunakan Borland Delphi 7

Cara Membuat Garis Menggunakan

Metode Bresenham

•       Membuat Garis Menggunakan Metode Bresenham:

Ø  Codingnya:

var

//var Garis bresenham//

  Form1: TForm1;

  x0,y0,x,y,x1,y1,x2,y2,k,e,deltaX,deltaY:integer;

procedure TForm1.FormPaint(Sender: TObject);

var

x,y:integer;

begin

for x:=0 to clientwidth do

canvas.pixels[x,clientheight div 2]:=clblue;

for y:=0 to clientheight do

canvas.pixels[clientwidth div 2,y]:=clblue;

end;

procedure TForm1.Button1Click(Sender: TObject);

begin

// rumus Garis Bresenham//

x0:=ClientWidth div 2;

y0:=ClientHeight div 2;

x1:=StrToInt(edit1.text);

x2:=StrToInt(edit2.Text);

y1:=StrToInt(edit3.Text);

y2:=StrToInt(edit4.Text);

deltaX:=x2-x1;deltaY:=y2-y1;

e:=2*deltaY-deltaX;

x:=x1;y:=y1;

for k:=1 to deltaX do

begin

// untuk Garis kanan Atas//

canvas.Pixels[x0+x,y0-y]:=clred;

if e>0 then

  begin

    y:=y+1;

    e:=e+2*(deltaY-deltaX);

  end

  Else e:=e+2*deltaY;

  x:=x+1;

end;

end;

end.

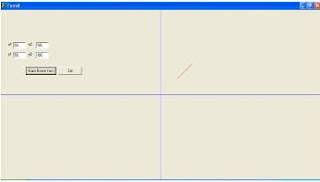

• Hasilnya Seperti dibawah ini:
